HDPE electrofusion tee is a high-quality pipe connector that plays an important role in high-density polyethylene (HDPE) pipe systems. HDPE electrofusion tee uses electric heating wire embedded inside the pipe fitting and corresponding electrofusion socket connection, which can quickly and firmly connect the pipes. Compared with traditional welding and threaded connection methods, this electrofusion connection method is simpler and more efficient, and can ensure the sealing and stability of the connection, effectively preventing pipeline leakage.
Technical Characteristics
It is made of high-quality HDPE material with better corrosion resistance, wear resistance and anti-aging properties. This material can be used for a long time in harsh environments and is not corroded by chemical substances, thus ensuring the stable operation of the pipeline system.
In addition, HDPE electrofusion tee also has better flexibility and compression resistance. Its flexibility enables the pipe to maintain good shape stability under temperature changes or external forces, reducing the risk of connection failure due to deformation. Its better pressure resistance enables the pipeline to withstand high internal pressure and meet the pipeline performance requirements of various projects.

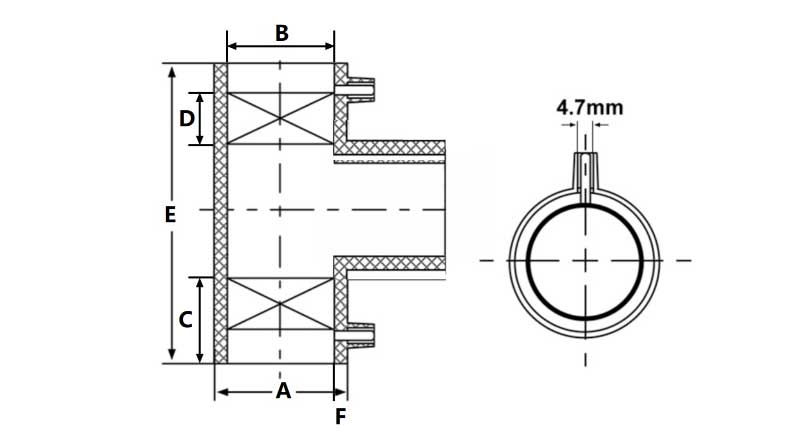

Specifications

| SDR11 | ||||||
| SPECIFICATION | SIZE(mm) | |||||
| A | B | C | D | E | F | |
| 50 | 59 | 50 | 50 | 25 | 142 | 4.5 |
| 63 | 74.4 | 63 | 50 | 27 | 162 | 5.7 |
| 75 | 86.6 | 75 | 58 | 29 | 180 | 6.8 |
| 90 | 106 | 90 | 64 | 32 | 205 | 8.1 |
| 110 | 130 | 110 | 72 | 35 | 235 | 10 |
| 125 | 147 | 125 | 70 | 37 | 255 | 11.36 |
| 160 | 189 | 160 | 77 | 47 | 295 | 14.5 |
| 200 | 236 | 200 | 100 | 50 | 360 | 18.1 |
| 225 | 266 | 225 | 100 | 55 | 370 | 20.4 |
| 250 | 298 | 250 | 110 | 51 | 430 | 22.7 |
| 315 | 372 | 315 | 135 | 67 | 535 | 28.6 |
| SDR17 | ||||||
| SPECIFICATION | SIZE(mm) | |||||
| A | B | C | D | E | F | |
| 315 | 352 | 315 | 120 | 60 | 495 | 18.5 |
| 400 | 477 | 400 | 150 | 75 | 630 | 23.5 |
| 500 | 558 | 500 | 150 | 90 | 725 | 29 |
