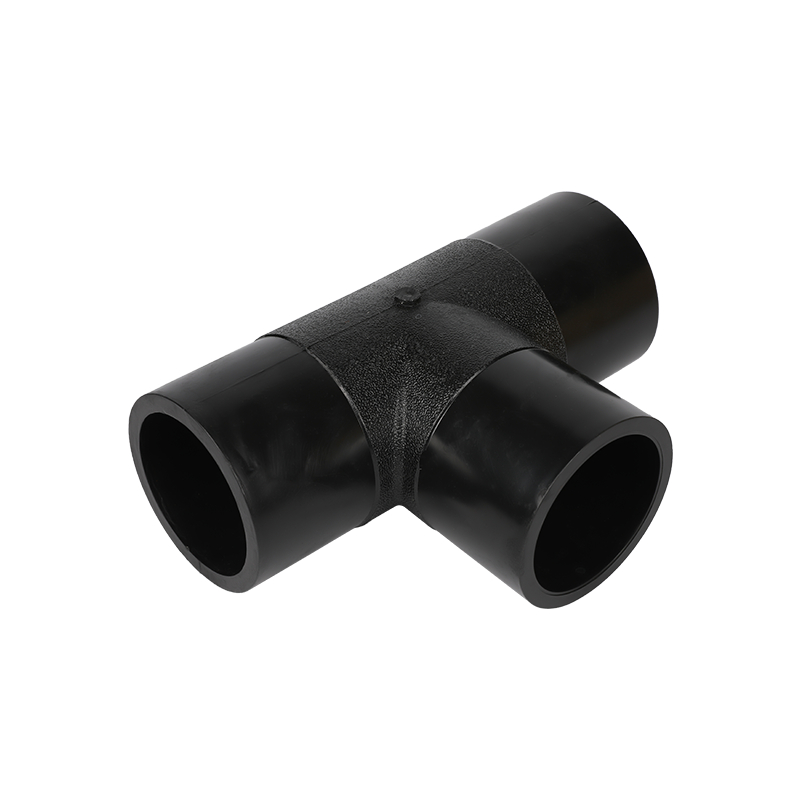

HDPE Butt Fusion Equal Tee, is a pipe connector made of high-density polyethylene material with performance and wide range of applications. It uses hot melt welding technology to connect pipes together to form an equal branch structure.
Technical Characteristics
HDPE Butt Fusion Equal Tee has better corrosion resistance and can operate stably for a long time in various corrosive media without being affected by corrosion and wear. Secondly, HDPE Butt Fusion Equal Tee has better pressure resistance and can withstand high pressure to ensure the safe operation of the pipeline system. In addition, it has good heat resistance and can work in high temperature environments to meet the needs of various industries.
The nature of HDPE Butt Fusion Equal Tee is also one of its advantages. First of all, it has good chemical stability and will not be corroded or dissolved by chemical substances. Secondly, it has good electrical insulation properties, can prevent current leakage and electromagnetic interference, and protect the safe operation of the pipeline system. In addition, HDPE Butt Fusion Equal Tee also has good wear resistance and can resist the impact and friction of the medium inside the pipeline, reducing the risk of damage to the pipeline system.
HDPE Butt Fusion Equal Tee not only has better product characteristics and performance, but also has a wide range of applications. It can be applied to pipeline systems in different industries such as water supply, drainage, chemical industry, petroleum, and natural gas. Its unique design structure can meet the connection needs of different pipeline systems and achieve reliable operation of the pipeline system.
Specifications

| dn | Size(mm) | Thickness | ||||||
| SPECIFICATION (dn) |
A | B | C | D | E | SDR17 | SDR13.6 | SDR11 |
| 63 | 186 | 59 | 6 | √ | ||||
| 75 | 205 | 59 | 7 | √ | ||||
| 90 | 235 | 64 | 8.2 | √ | ||||
| 110 | 254 | 66 | 10 | √ | √ | |||
| 125 | 277 | 67 | 12 | √ | √ | |||
| 140 | 295 | 69 | 13 | √ | √ | |||
| 160 | 318 | 70 | 15 | √ | √ | |||
| 180 | 346 | 74 | 17 | √ | √ | |||
| 200 | 367 | 75 | 18.4 | √ | √ | √ | ||
| 225 | 400 | 79 | 21 | √ | √ | √ | ||
| 250 | 443 | 87 | 23.3 | √ | √ | √ | ||
| 280 | 478 | 90 | 26 | √ | √ | √ | ||
| 315 | 522 | 95 | 29.2 | √ | √ | √ | ||
| 355 | 588 | 106 | 33 | √ | √ | |||
| 400 | 624 | 103 | 37.4 | √ | √ | |||
| 450 | 652 | 96 | √ | √ | ||||
| 500 | √ | |||||||
| 630 | ||||||||
