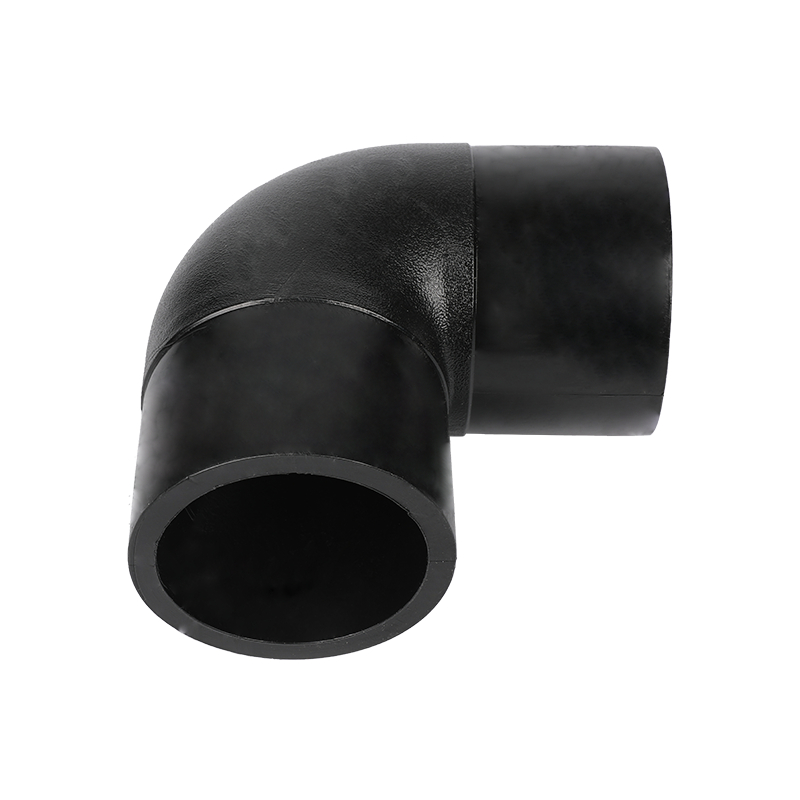

HDPE Butt Fusion Equal Elbow is a high-performance polyethylene pipe connection component that is widely used in urban water supply, drainage, gas transmission, and other engineering fields. It is made of high-quality high-density polyethylene (HDPE) material and has better corrosion resistance. It can effectively resist the erosion of various chemical substances and ensure the long-term stable operation of the pipeline system.
Technical Characteristics
HDPE material has good chemical stability, so HDPE Butt Fusion Equal Elbow has better corrosion resistance. It remains stable in harsh chemical environments and is not affected by corrosion, extending the life of the pipeline. In addition, HDPE Butt Fusion Equal Elbow also has better compressive strength and toughness. In high-pressure, high-flow working environments, it can maintain stability and reliability, effectively avoiding rupture and leakage of the pipeline system. Its better toughness also makes it less likely to break or be damaged during installation and use.
The elbow adopts a hot-melt butt connection method and has good sealing performance. This connection method can make the connection between the elbow and the pipe tighter and more reliable, and effectively prevent leakage. At the same time, it also has the characteristics of easy operation and high connection quality and can meet the needs of various complex projects.
Specifications

| HDPE Butt Fusion Equal Elbow | ||||||
| dn | Size(mm) | Thickness | ||||
| SPECIFICATION (dn) |
A | B | C | SDR17 | SDR13.6 | SDR11 |
| 63 | 59 | 6 | 123 | √ | ||
| 75 | 59 | 7 | 137 | √ | ||
| 90 | 64 | 8 | 159 | √ | ||
| 110 | 66 | 10 | 182 | √ | √ | |
| 125 | 68 | 11.8 | 199 | V | √ | |
| 140 | 70 | 13 | 217 | √ | √ | |
| 160 | 70 | 15 | 236 | √ | √ | |
| 180 | 74 | 16.7 | 259 | √ | √ | |
| 200 | 75 | 18.6 | 278 | √ | √ | √ |
| 225 | 79 | 20.3 | 310 | √ | √ | √ |
| 250 | 87 | 22.8 | 340 | √ | √ | √ |
| 315 | 95 | 28.7 | 410 | √ | √ | √ |
| 355 | 108 | 33 | 463 | √ | √ | |
| 400 | 105 | 37 | √ | √ | ||
| 500 | 104 | 45.5 | 595 | √ | √ | |
