HDPE Socket Fusion Equal Coupler is a high-performance plastic product widely used in pipe connections. Made of high-density polyethylene (HDPE) material, it has corrosion resistance, aging resistance, and environmental stress cracking resistance, ensuring long-term service life and reliability.
Technical Characteristics
As a pipe connector, the HDPE Socket Fusion Equal Coupler has better sealing performance. It adopts an advanced socket design and a high-strength sealing ring to achieve an better sealing effect and effectively prevent media leakage. The connection strength is also very high. Through hot-melt welding technology, a strong chemical bond is formed between the joint and the pipe, and the pull-out resistance is better, ensuring the overall stability of the pipe system.
HDPE Socket Fusion Equal Coupler is also chemically resistant. Made of HDPE material, it has good corrosion resistance to acid, alkali, and salt solutions, and is suitable for various complex working conditions, reducing maintenance costs. This also makes it the connector of choice for a variety of industrial piping systems.

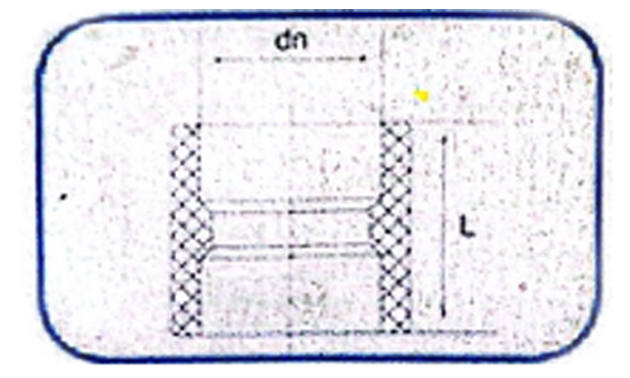

Specifications

|
SIZE |
dn |
L |
|
S20-20 |
20 |
32.5 |
|
S25-25 |
25 |
36 |
|
S32-32 |
32 |
43 |
|
S40-40 |
40 |
46 |
|
S50-50 |
50 |
48 |
|
S63-63 |
63 |
58 |
|
S75-75 |
75 |
64 |
|
S90-90 |
90 |
68.2 |
|
S110-110 |
110 |
80.6 |
