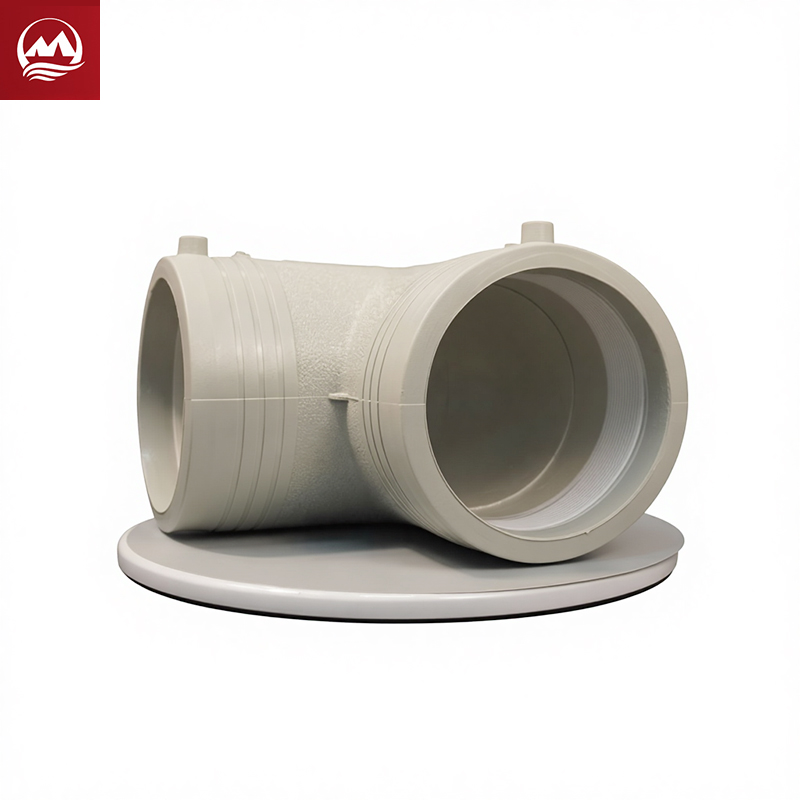

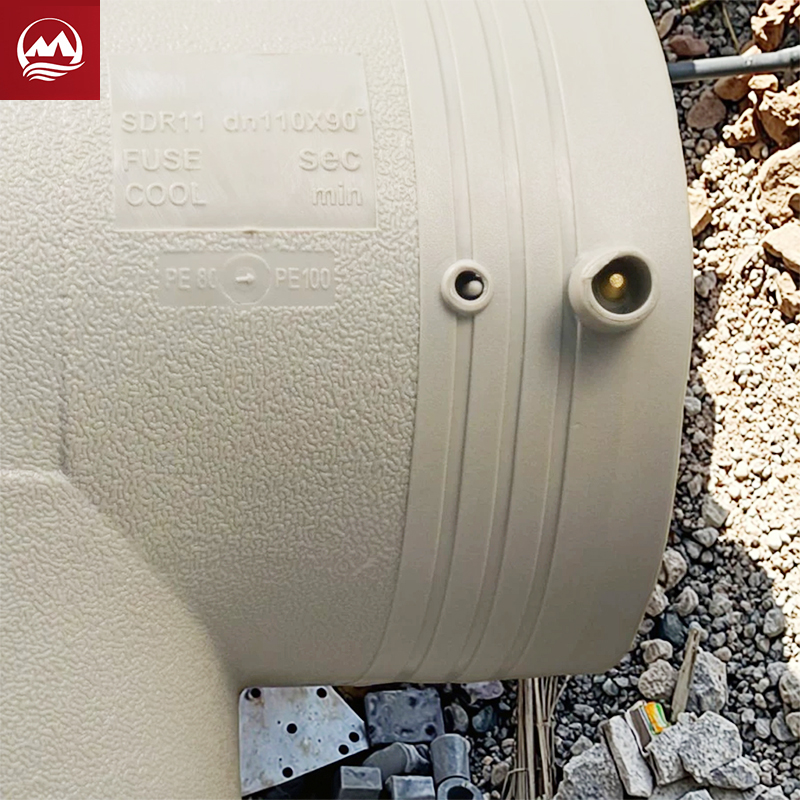

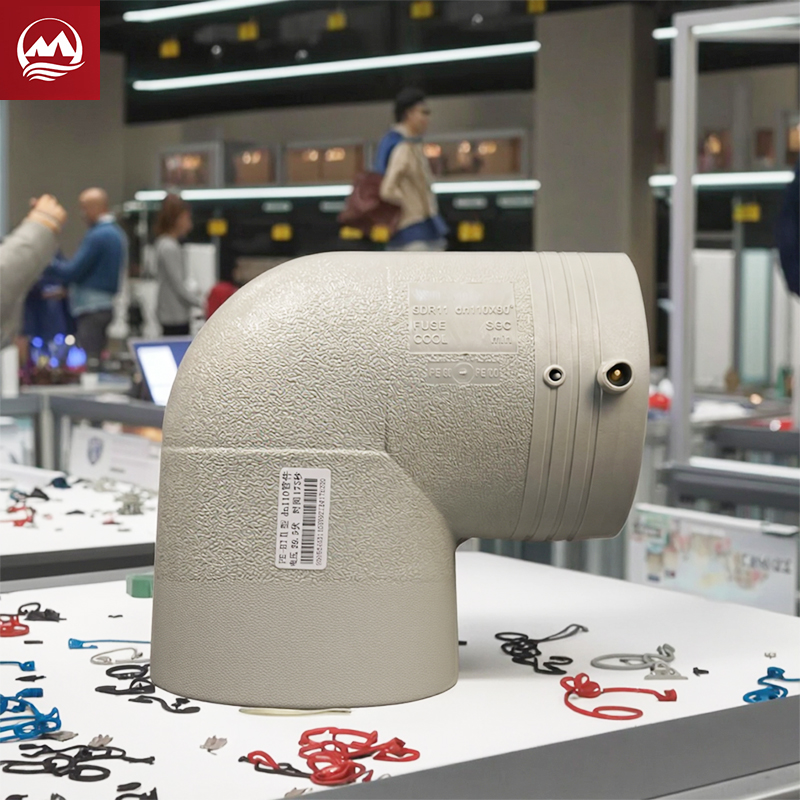

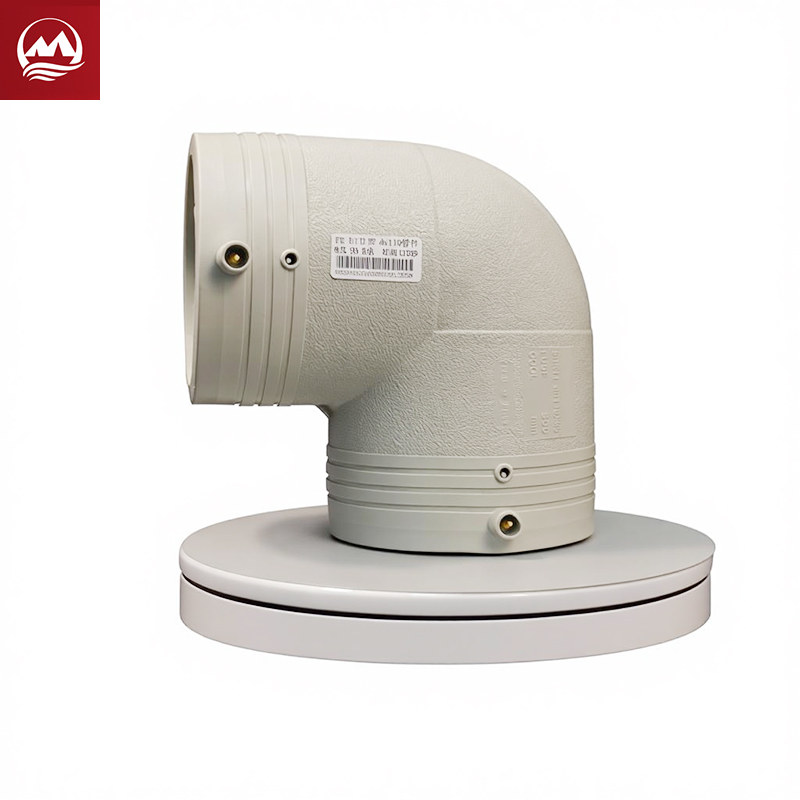

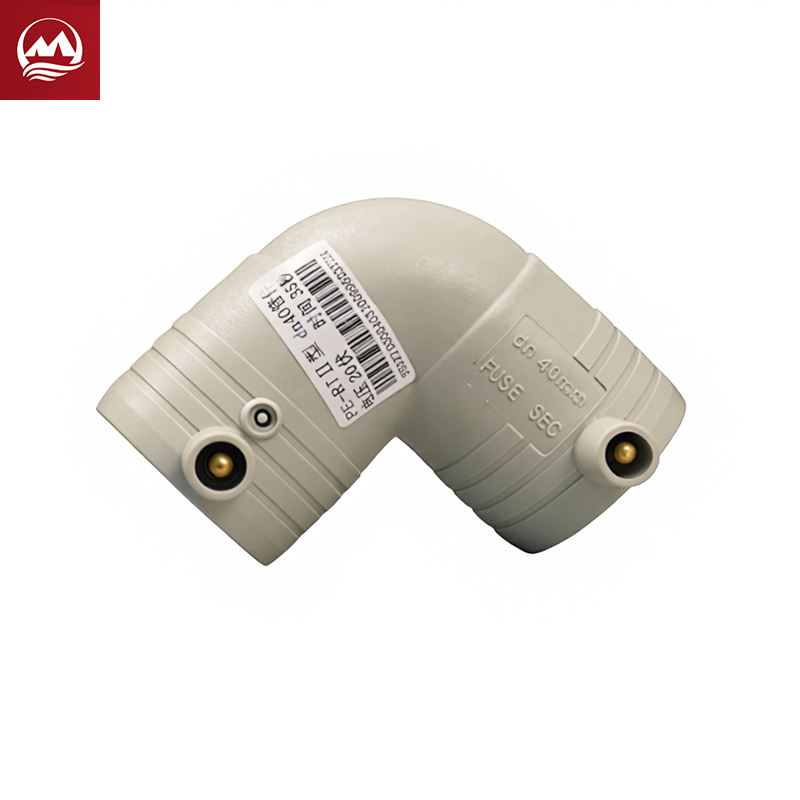

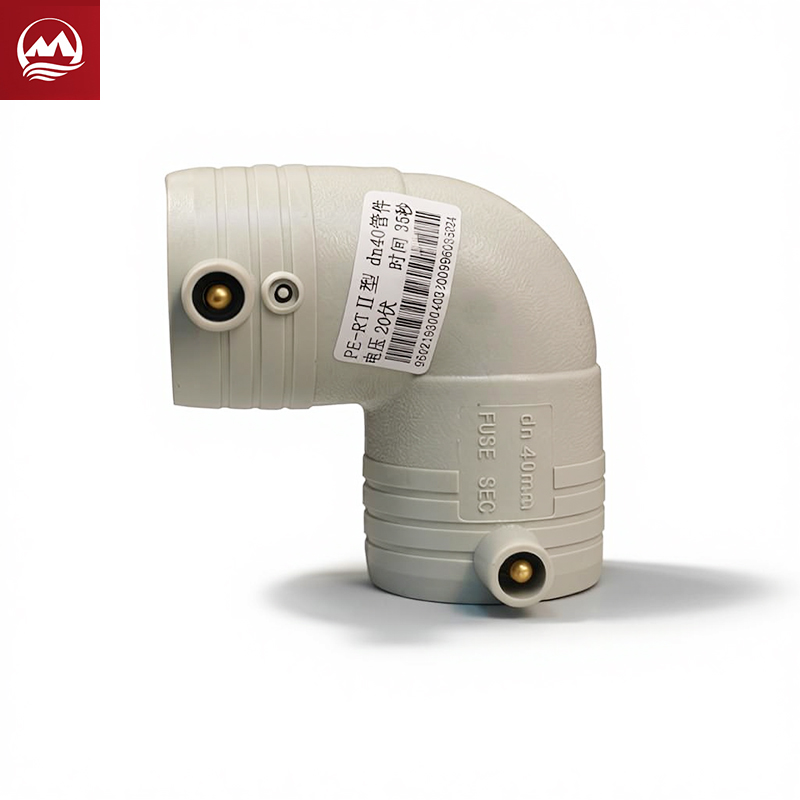

The EF 90° Elbow is specifically engineered to execute a precise ninety-degree directional change within a Polyethylene piping system. In complex pipeline layouts, this elbow is the ideal choice for bypassing obstacles, altering the pipeline route, or connecting to vertical equipment interfaces. The elbow is produced via high-precision injection molding, which ensures the accuracy of the turning angle and the uniformity of the wall thickness. This effectively reduces pressure loss at the bend and minimizes internal stress concentration within the pipe. High-performance heating wires are installed in the electrofusion zones at both ends of the elbow, guaranteeing a strong, durable, and leak-proof connection at this high-stress turning point. Compared to on-site thermal bending, the electrofusion elbow offers superior connection quality and controllability, preventing internal weld beads that could obstruct the fluid path. This fitting is indispensable for critical applications that demand strictly controlled routing and highly reliable directional changes.
Technical Characteristics
Specifications
| EF 90°Elbow | L20*90° |
| L25*90° | |
| L32*90° | |
| L40*90° | |
| L50*90° | |
| L63*90° | |
| L75*90° | |
| L90*90° | |
| L110*90° | |
| L125*90° | |
| L140*90° | |
| L160*90° | |
| L180*90° | |
| L200*90° | |
| L225*90° | |
| L250*90° | |
| L280*90° | |
| L315*90° | |
| L355*90° | |
| L400*90° | |
| L500*90° |
