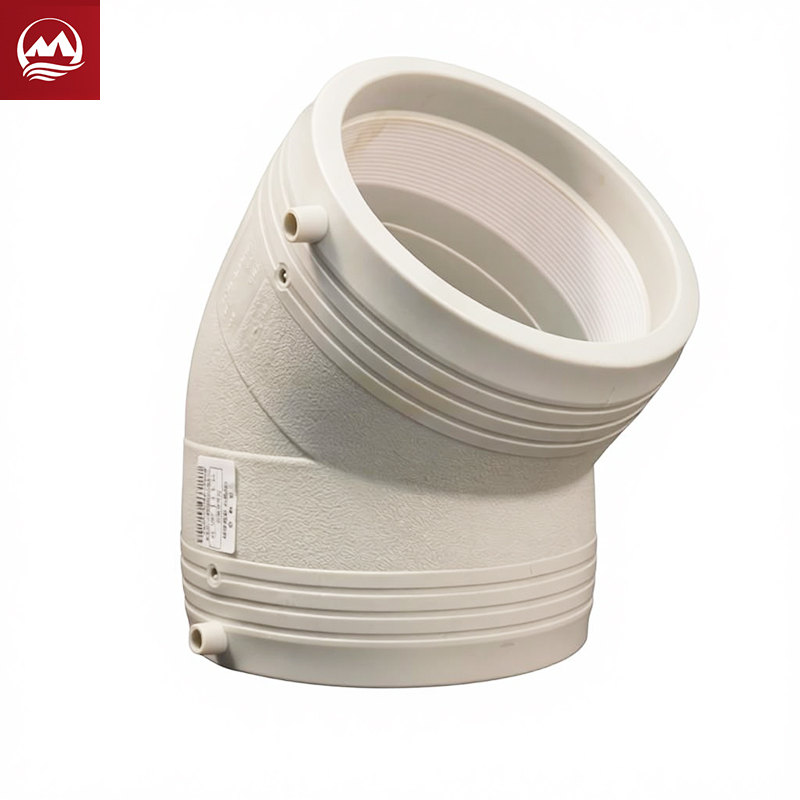

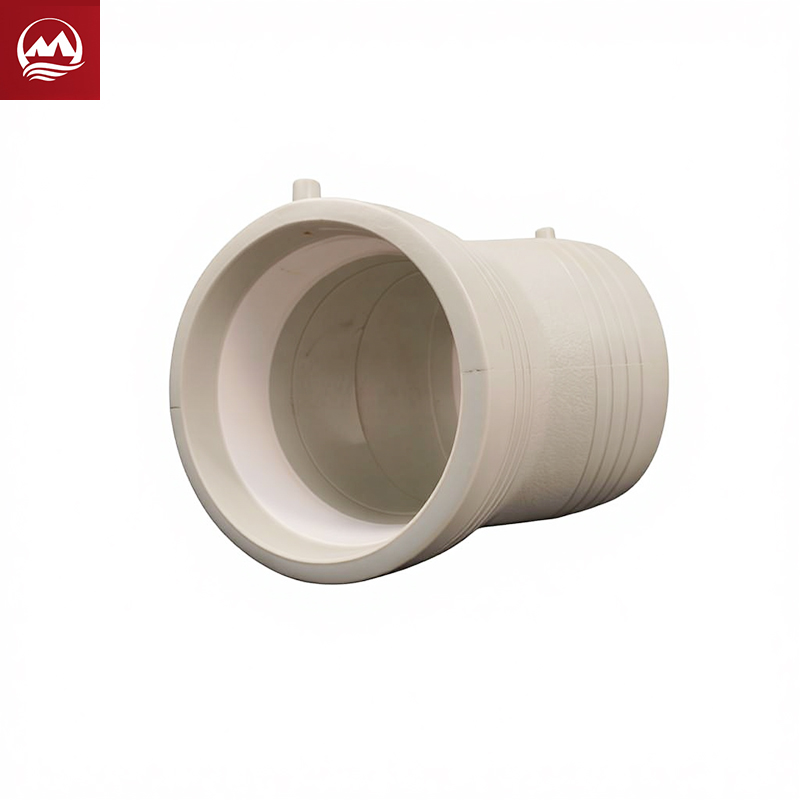

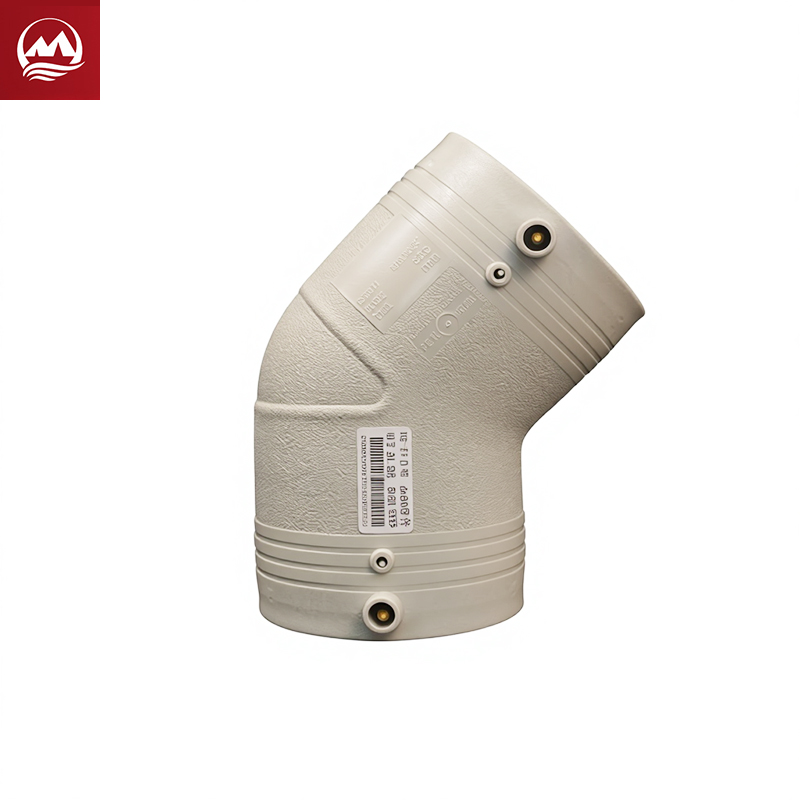

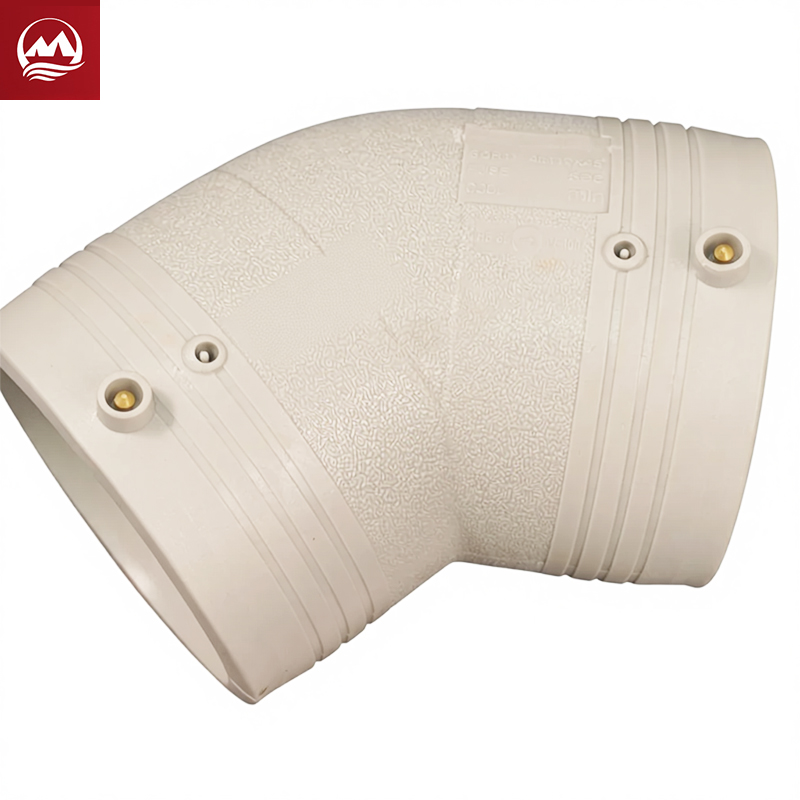

The EF 45° Elbow is utilized in piping systems to facilitate a smooth forty-five-degree change in direction. This specific design aims to optimize fluid dynamic performance by significantly reducing flow resistance and effectively mitigating the impact of water hammer effects. This is particularly crucial for long-distance, high-velocity water and gas transmission pipelines, helping to maintain system energy efficiency and stability. This elbow is also constructed from high-quality PE100 material, and its integrated electrofusion technology ensures the strength and seal integrity at the transition point. Through this gentle turning radius, it can accommodate pipeline routing through challenging terrains and provides greater flexibility in pipe design, for instance, allowing for a smooth 90-degree turn by combining two 45-degree elbows. The EF 45° Elbow is the preferred choice for engineering projects that seek high operational efficiency while needing to mitigate the risks associated with fluid pressure fluctuations.
Technical Characteristics
Specifications
| EF 45°Elbow | L25*45° |
| L32*45° | |
| L40*45° | |
| L50*45° | |
| L63*45° | |
| L75*45° | |
| L90*45° | |
| L110*45° | |
| L125*45° | |
| L140*45° | |
| L160*45° | |
| L180*45° | |
| L200*45° | |
| L225*45° | |
| L250*45° | |
| L280*45° | |
| L315*45° | |
| L355*45° | |
| L400*45° |
